Perfect partner for remodelling bone defects rapidly

Reliable and convenient, NanoBone is a next generation, fully synthetic bone graft substitute.
Consisting of nanostructured hydroxyapatite (HA) embedded in a silica gel matrix – suspended in a hydrogel/polymer silica carrier – it provides the fullest support for bone regeneration at every stage of the healing process.

  • Comparable healing rate to autograft without the costs and complications of harvesting1
  • Rapid absorption and reliable bone fusion1
  • Proven osteoinductive properties2
  • Early osteogenesis – silica matrix exchanged for autologous proteins within 10 days3
  • Patented nanostructure and optimised composition4
  • Preloaded, versatile and ready to use4

Patented nanostructure and optimised composition

Unlike traditional synthetic HA scaffolds, the HA in NanoBone is precipitated and unsintered to preserve its highly porous and permeable nanoarchitecture and degradation properties. When combined with the high porosity silica gel matrix, NanoBone offers distinct design properties for successful bone healing:5

• Nanostructure of HA platelets is identical in morphology to HA in bone6,7,8
• Nanostructure increases autologous protein enrichment3,9
• Proven osteoinductive properties2

Nanostructure of HA platelets is identical in morphology to HA in bone

NanoBone is precipitated to achieve a HA morphology that mimics the HA in natural bone and ensures that complete natural bone remodelling takes place. Traditional sintered HA consists of larger connected crystals which lower porosity and its ability to degrade.10,11

HA diffraction patterns8

Nanostructure increases autologous protein enrichment

High inner surface area is key to biological efficiency. Increasing the interaction between NanoBone and serum increases autologous
protein enrichment and formation of an extracellular matrix to start bone healing.3,9,11

Specific surface area9,11,12

Proven osteoinductive properties

Exchange of the silica gel for autologous proteins, in combination with nanostructured HA, provides a compound very similar to that of skeletal bone and promotes bone remodelling.2,11

Histomorphometric findings in subcutaneous tissue2

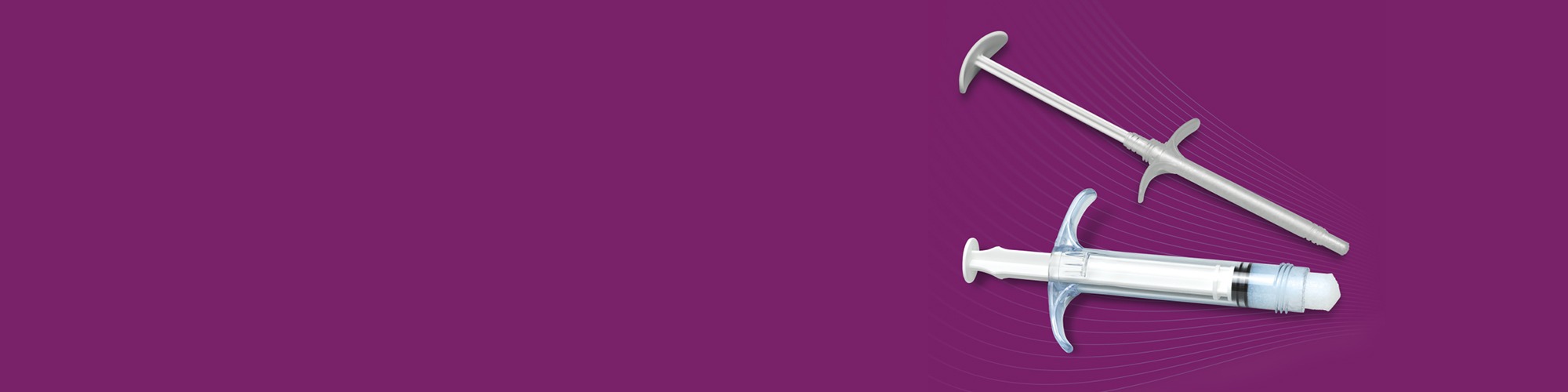

NanoBone® products
NanoBone® SBX Putty

High extrusion volume
for placement into larger
open wounds

  • Available as 1.0ml, 2.5ml, 5.0ml and 10.0ml
NanoBone® QD

Slender profile for placement into deep cavities and minimally invasive procedures

  • Available as 1.0ml, 2.5ml, 5.0ml and 10.0ml

References and regulatory statements

1. Kienast B et al. (2016). Nanostrukturiertes synthetisches Knochenersatzmaterial zur Behandlung von Knochendefekten, Trauma und
Berufskrankheit, 4(18), 308-18. 2. GĂśtz, W et al. (2010). A preliminary study in osteoinduction by a nano-crystalline hydroxyapatite in the mini pig.
Folia histochemica et cytobiologica, 48(4), 589-596. 3. Xu W (2011). Evaluation of injectable silica-embedded nanohydroxyapatite bone substitute in a rat tibia defect model. Int J Nanomedicine, 6, 1543-52. 4. NanoBone® Summary of product characteristics. 5. Meier J et al. (2008). Application of the synthetic nanostructured bone grafting material NanoBone® in sinus floor elevation, Implantologie, 16, 301-14. 6. Fratzl, P., et al., (1991). Nucleation and Growth of Mineral Crystals in Bone Studied by Small-Angle-X-Ray Scattering, Calcif Tissue Int., 48, 407-413. 7. Weiner, S., et al., (1986). Disaggregation of Bone Into Crystals, Calcif Tissue Int., 39, 365-375. 8. Scherrer P., (1918). Bestimmung der Grösse und der inneren Struktur von Kolloidteilchen mittels Röntgenstrahlen, Nachrichten von der Gesellschaft der Wissenschaften zu Göttingen, Mathematisch-Physikalische Klasse, 98-100. 9. Kirchhoff M et al. (2011). Lateral augmentation of the mandible in minipigs with a synthetic nanostructured hydroxyapatite block. Journal of biomedical materials research. Part B, Applied biomaterials, 96(2), 342–350. 10. Götz W et al. (2008). Immunohistochemical characterization of nanocrystalline hydroxyapatite silica gel (NanoBone) osteogenesis: a study on biopsies from human jaws. Clinical oral implants research, 19(10), 1016–1026. 11. Gerber T et al. (2012). Nanostructured bone grafting substitutes – A pathway to osteoinductivity. In Key Engineering Materials, 493, 147-152. 12. Data on file, External testing: Specific surface area, 2010. 13. Abshagen K et al. (2009). In vivo analysis of biocompatibility and vascularization of the synthetic bone grafting substitute NanoBone®. Journal of Biomedical Materials Research Part A: An Official Journal of The Society for Biomaterials, The Japanese Society for Biomaterials, and The Australian Society for Biomaterials and the Korean Society for Biomaterials, 91(2), 557-566. 14. Rickert M et al. (2019). Clinical Outcome After Anterior Lumbar Interbody Fusion with a New Osteoinductive Bone Substitute Material: A Randomized Clinical Pilot Study. Clinical spine surgery, 32(7), E319–E325. 15. Hebecker R et al. (2008, June 1). A new nanostructured bone substitute for use in neurosurgery – results of a prospective study in lumbar fusion and further applications. 59th Annual Meeting of the German Society of Neurosurgery (DGNC) 3rd Joint Meeting with the Italian Neurosurgical Society (SINch). 16. Rosenthal H. (2022). Evaluating a Nanocrystalline Hydroxyapatite Bone Graft Substitute for the Treatment of Benign Bone Tumors. The Internet Journal of Orthopedic Surgery, 30(1).
